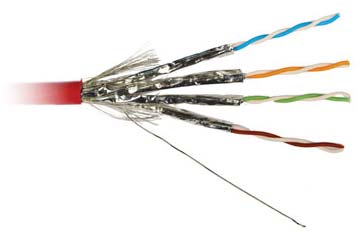

Fire Resistant CAT6A SWB Armoured Data Cables

Fire Resisting S/FTP Cat6A Cable to IEC 60331-23

part no. FFX-CAT6S/FTP4P23FR SWB

Fire Resistant CAT6A SWB Armoured Data CablesFire Resistant CAT6A SWB Armoured Data Cables

Application:

Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,

100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can  be  offered  with copper

wire braid armoured & fame retardant outer sheath, providing additional mechanically protection still

maintaining the fexibility of the cable.

STANDARDS:

Basic design adapted to EN 50173

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-23; BS 6387 CWZ (Optional)

Flame Retardance (Single vertical wire or cable test)

IEC 60332-1-2; EN 60332-1-2

Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)

IEC 60332-3-24; EN 60332-3-24

Halogen Free

IEC 60754-1; EN 50267-2-1

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2

Minimum Smoke Emission

IEC 61034-2; EN 61034-2

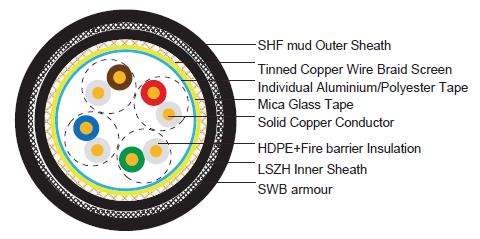

CABLE CONSTRUCTION

Conductors: 23AWG solid bare copper.

Insulation: HDPE+fire barrier insulation.

Twinning: Two coloured insulated conductors twisted together to form a pair.

Individual Shield: Every pair is separately shielded with polyester aluminum foil, which covers> 100% of twisted

pair, tinned copper drain wire is outside the Aluminum side contact with the braiding.

Fire Barrier tape: Mica glass tape applied over each pair. Overall Shield: Tinned copper braiding, min. 60%

coverage. Inner Sheath: Thermoplastic LSZH compound, coloured black. Armouring: Steel wire braiding.

Outer Sheath: SHF mud. Halogen-free fame retardant thermosetting LSZH compound type LTS3 as per BS 7655-

6.1, which is  UV resistance, oil resistance, mud resistance.

PHYSICAL AND THERMAL PROPERTIES

Temperature range: -30°C - +75°C

Minimum bending radius during installation (mobile state): 8 x Overall Diameter

Minimum bending radius during operation (ixed state): 4 x Overall Diameter

ELECTRICAL PROPERTIES

AWG



23

Nominal Conductor Diameter

mm

0.58

Maximum DC Resistance@20°C

O/100m

9.38

Maximum DCR Unbalance

%

3

Maximum Mutual Capacitance

pF/m

5.8

Maximum Capacitance Unbalance

pF/100m

30

Characteristic Impedance@1-100MHz

O

100±15

Maximum Propagation Delay Skew

ns/100m

18

TRANSMISSION PROPERTIES



FREQ
MHz



Attenuation dB/100m



NEXT
dB



PSNEXT
dB



ELFEXT
dB/100m



PSELFEXT
dB/100m



RL
dB

0.772

1.8

76.0

74.0

70.0

67.0

1

2.0

74.3

72.3

67.8

64.8

20.0

4

3.8

65.3

63.3

55.7

52.7

23.0

8

5.3

60.8

58.8

49.7

46.7

24.5

10

6.0

59.3

57.3

47.8

44.8

25.0

16

7.6

56.3

54.3

43.7

40.7

25.0

20

8.5

54.8

52.8

41.7

38.7

25.0

25

9.5

53.3

51.3

39.8

36.8

24.3

31.25

10.7

51.9

49.9

37.9

34.9

23.6

62.5

15.4

47.4

45.4

31.8

28.8

21.5

100

19.8

44.3

42.3

27.8

24.8

20.1

155

25.2

41.5

39.5

23.9

20.9

18.8

200

29.0

39.8

37.8

21.7

18.7

18.0

250

32.8

38.3

36.3

19.8

16.8

17.3

CONSTRUCTION PARAMETERS



Cable Code

Construction
No. of Elements×No. of Cores in Element×Conductor Diameter



Nominal Insulation Thickness



Nominal Inner Sheath Thickness



Nominal Outer Sheath Thickness



Approx. Overall Diameter



Nominal Weight



mm

mm

mm

mm

mm

kg/km

FFX-CAT6S/FTP4P23FR SWB

4×2×0.58

0.45

0.9

1.1

20.0

530
